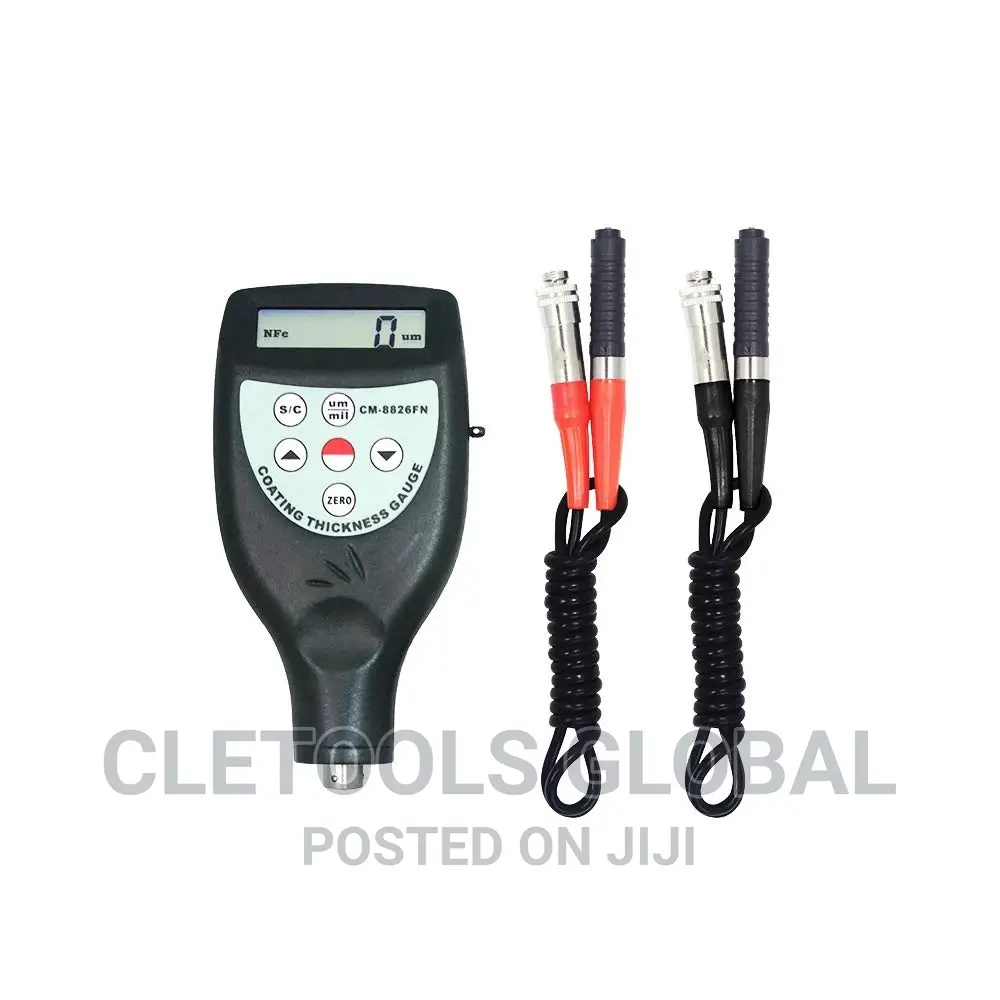

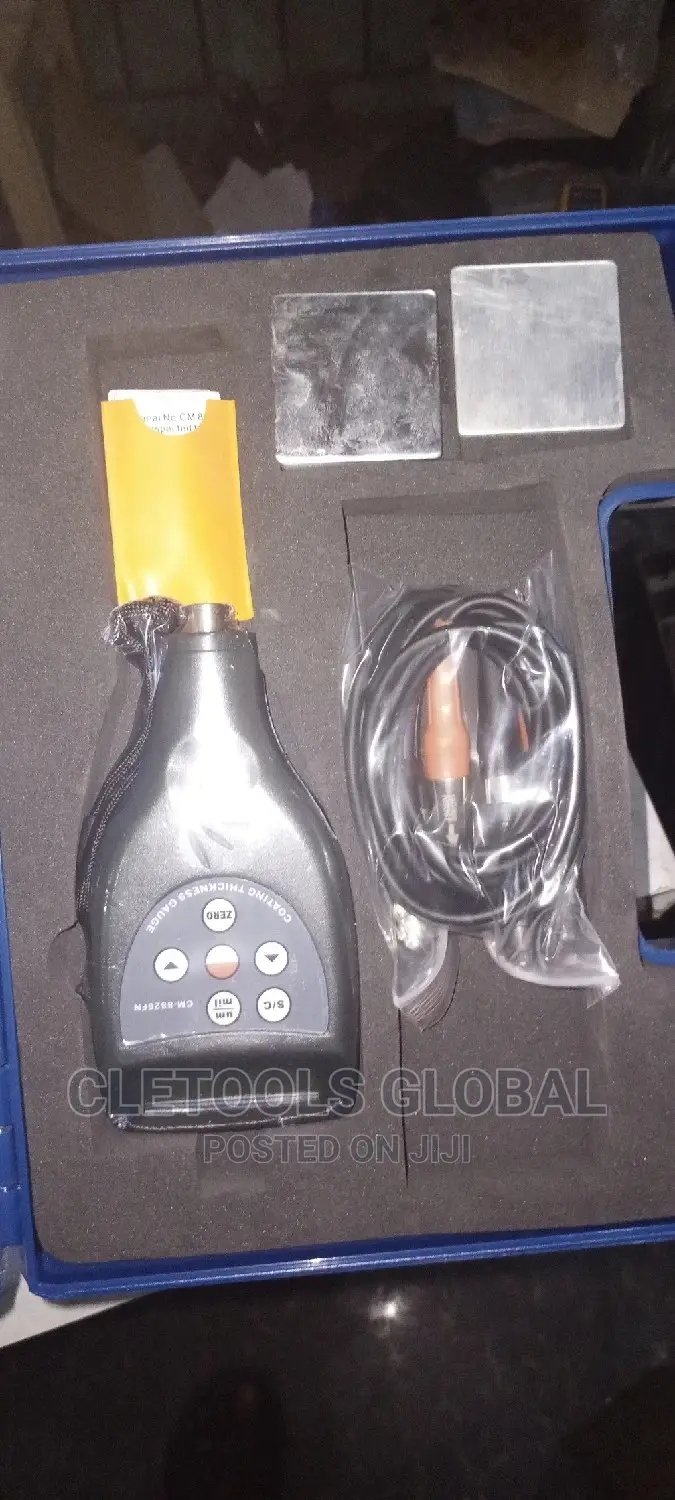

Coating Thickness Gauge

+1

2

Sabo Fil

Yanayi

Meter

Nau'i

Description Principle s 1. F Type Magnetic Induction (Iron Base): Applications: Measure the thickness of non-magnetic materials on magnetic materials Examples:Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc. 2. NF Type Eddy Current (Aluminium Base): Applications: Measure the thickness of non-conductive coatings on non-magnetic metals Examples: Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc. speccification: Principle: NF Type Eddy Current / F Magnetic Induction Range: 0~1250μm/0~50mil Resolution: 0.1μm/1μm Accuracy: ±1~3%n or ±2.5μm Min.Radius Workpiece: F Type:convex 1.5mm/concave 25mm; NF Type:convex 3mm/concave 50mm Min.Measuring Area: 6mm Min.Sample Thickness: 0.3mm Metric/Imperial: Convertible Battery Indicator: Low Battery Indicator Automatic Power Off: Yes Operating Conditions: Temperature:0~50oC Humidity:<80%RH
