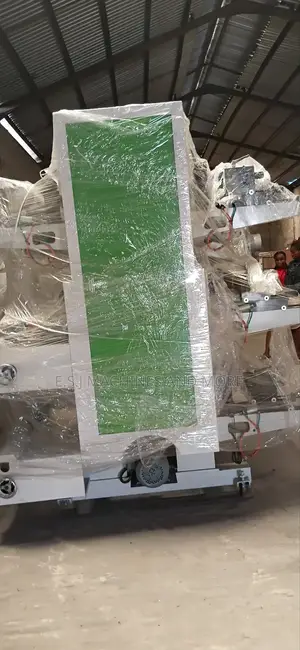

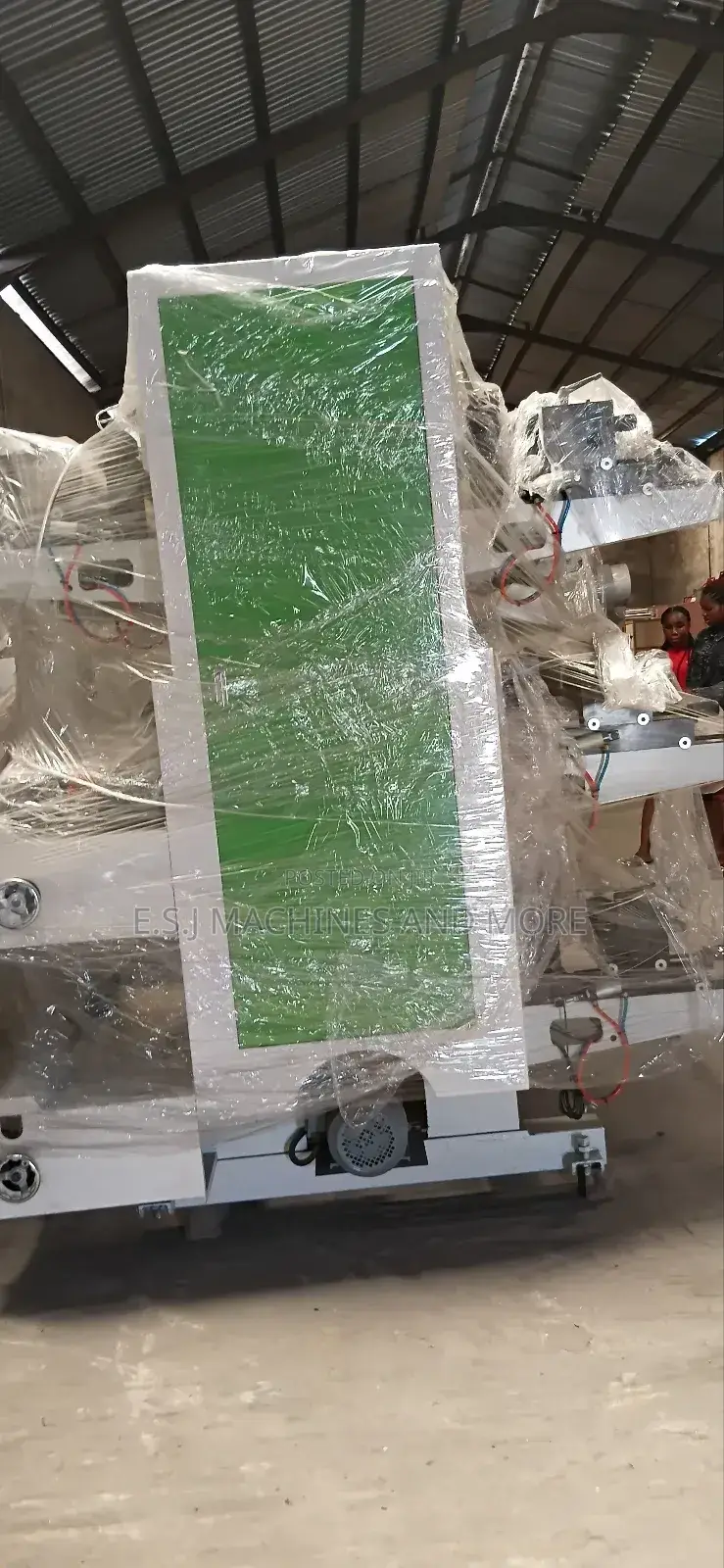

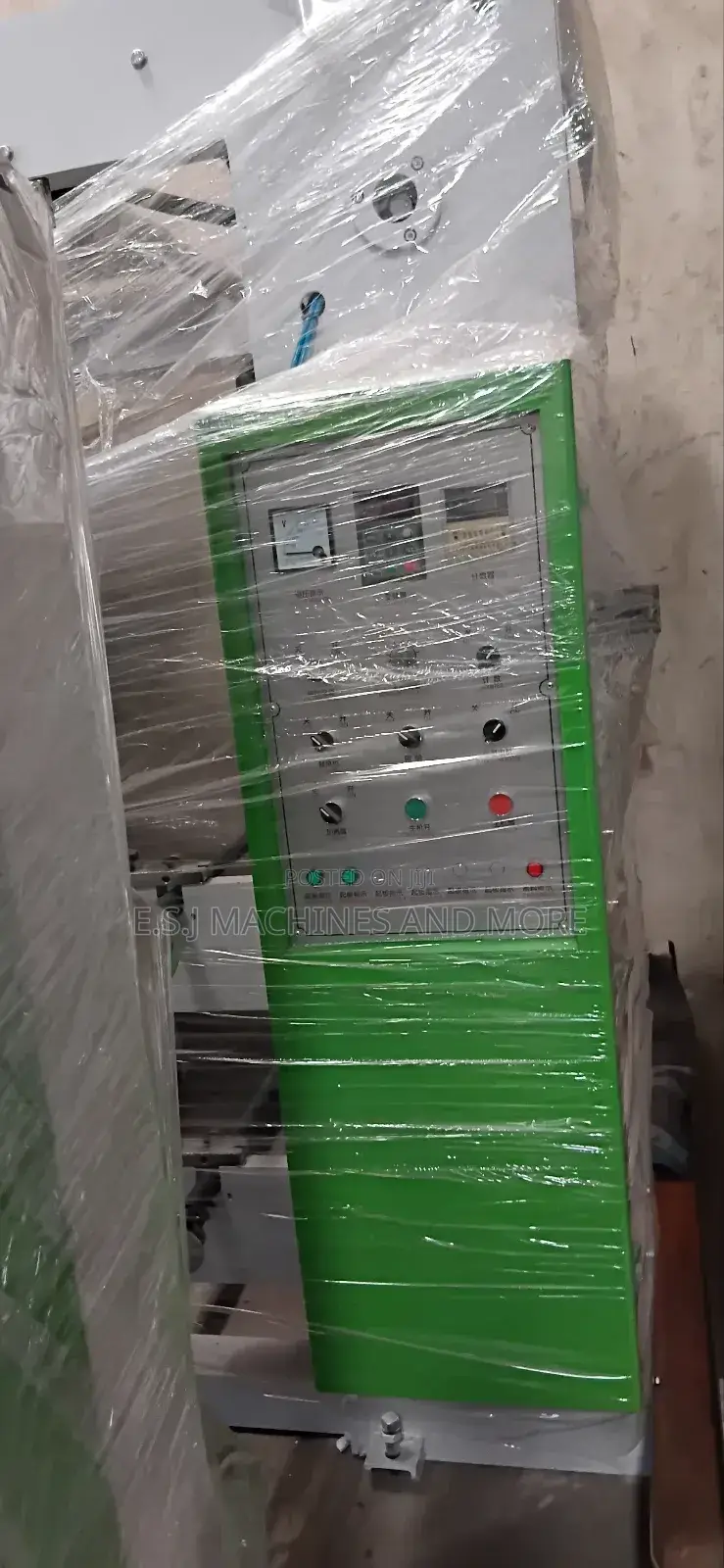

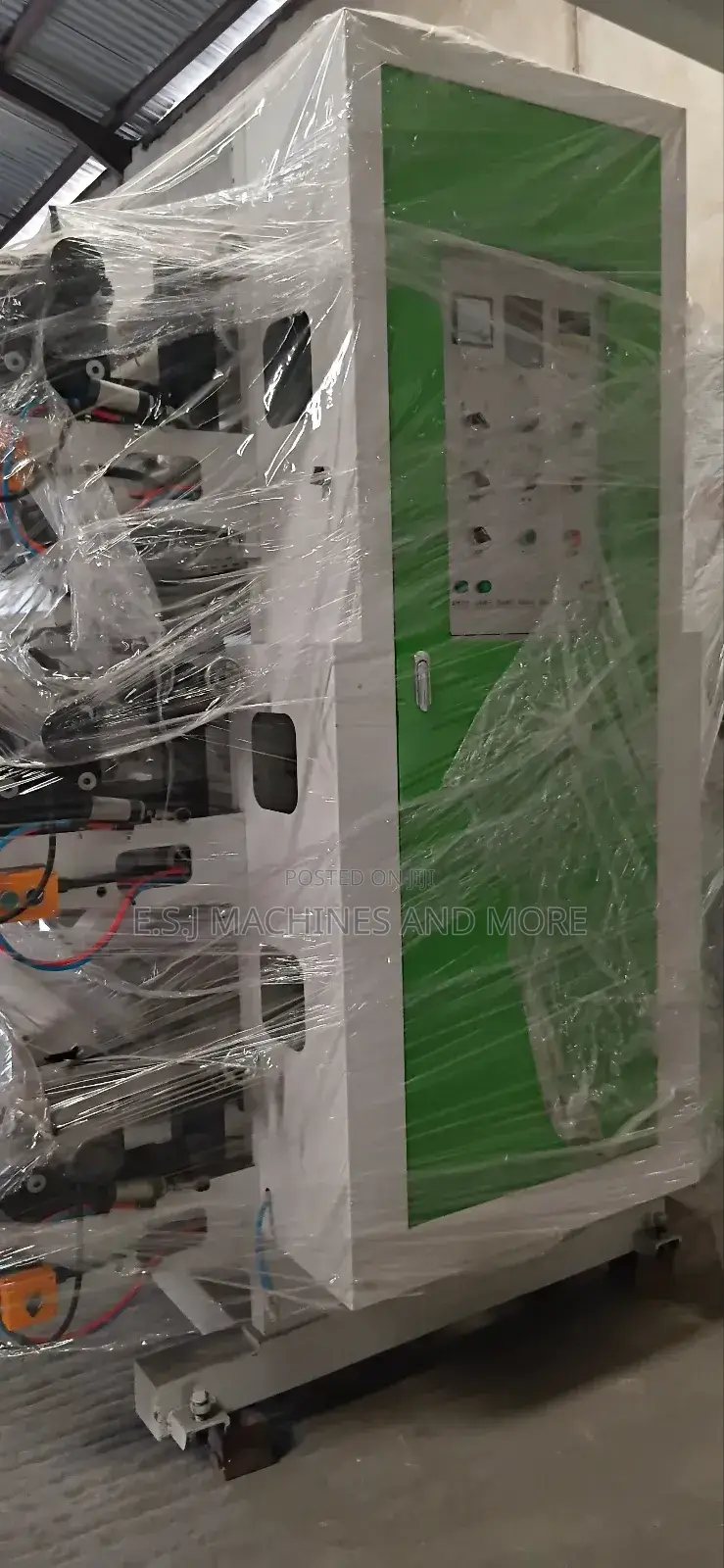

Four Colour Flexo Printing Machine Colour Printing Machine
Printing machine
Nau'i
Sabo Fil
Yanayi
Adireshin dakin ajiya
4
Jiha Lagos • Ojo
448 Satelite Town Old Ojo Road Opposite tradefair Lagos
Abuledo Bustop divert into Old Ojo Road Stop at Divas Cake then call me
Closed
• Lit - Asa, 09:00-18:00
4 colour flexo printing machine (short type)
main technical parameters
model
syt4-1200
suitable material
film (opp pe pvc)
no. of printing color
4colors
max film width
1250mm
max print width
1160mm
printing length (repeat )
250-1000mm
max. mechanical speed
70m/min
max. printing speed
20-55m/min
transmission way
spur gear drive
register precision
longitude:±0.5mmtransverse:±0.5mm
master motor power
2.2kw
the frequency converter
2.2kw
machine power
8kw
cover dimensions
2.3× 2.2× 2.3m
weight
1800kg
voltage
380v, 50hz, three phase
₦ 20,000,000
