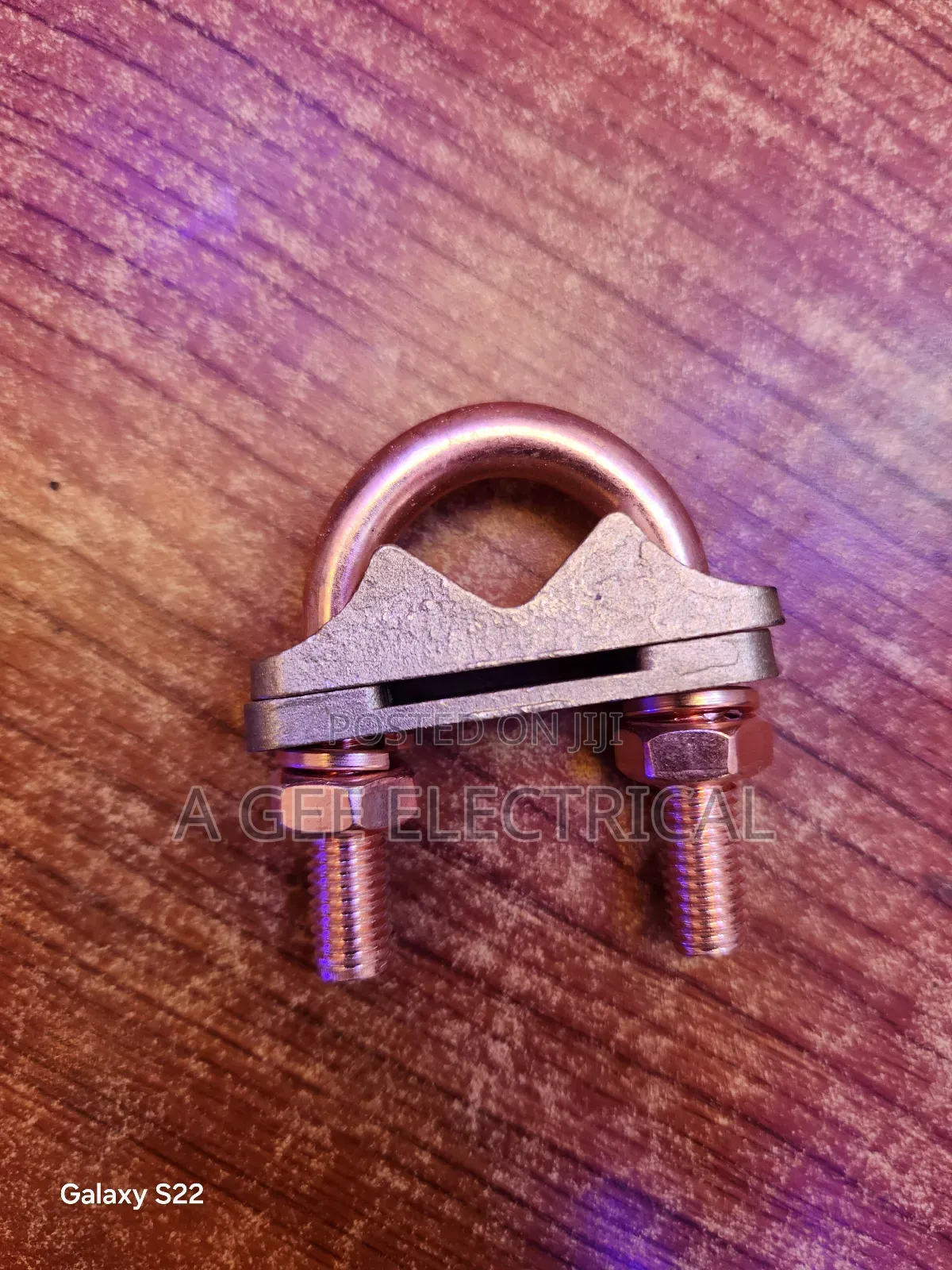

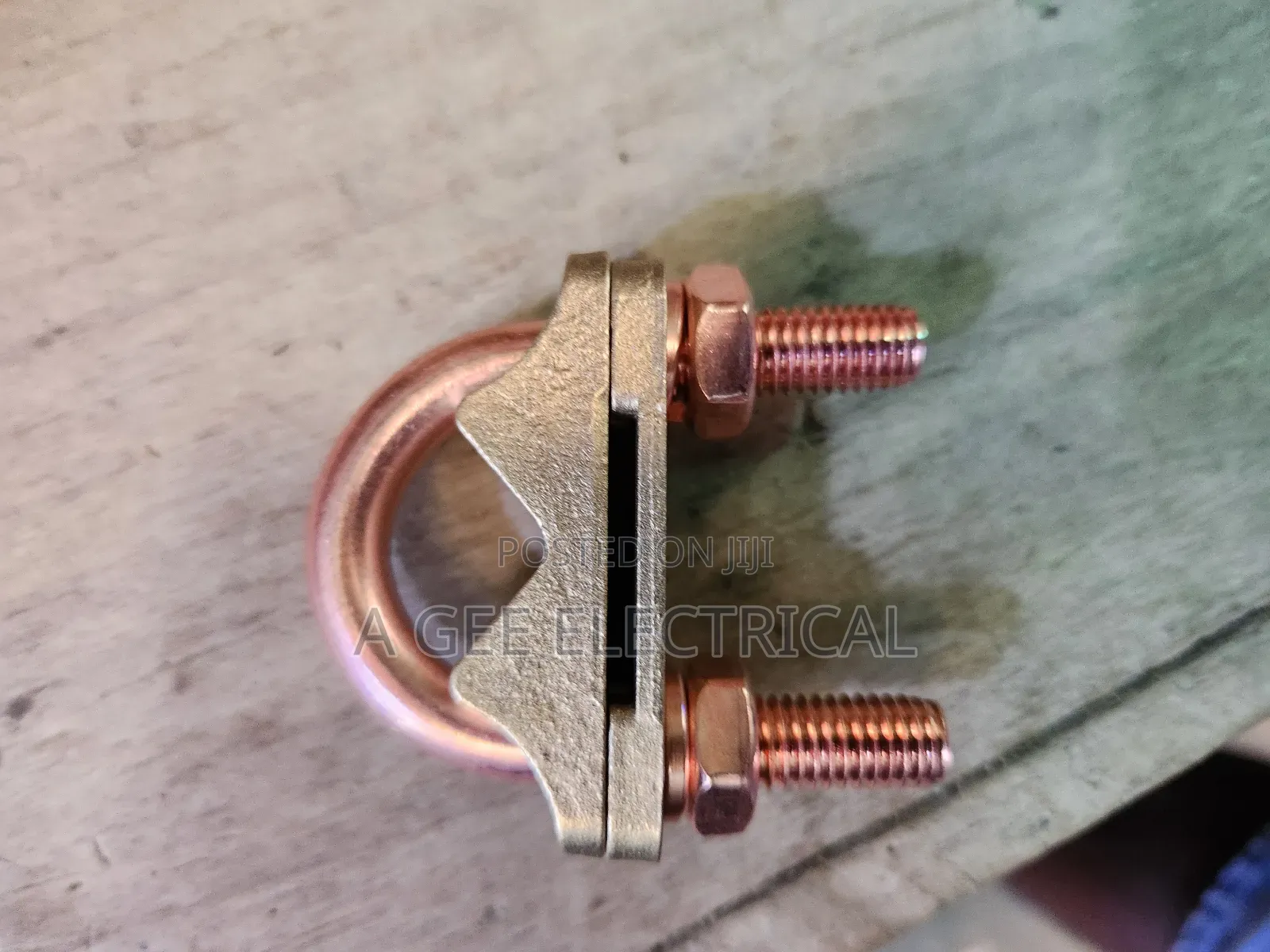

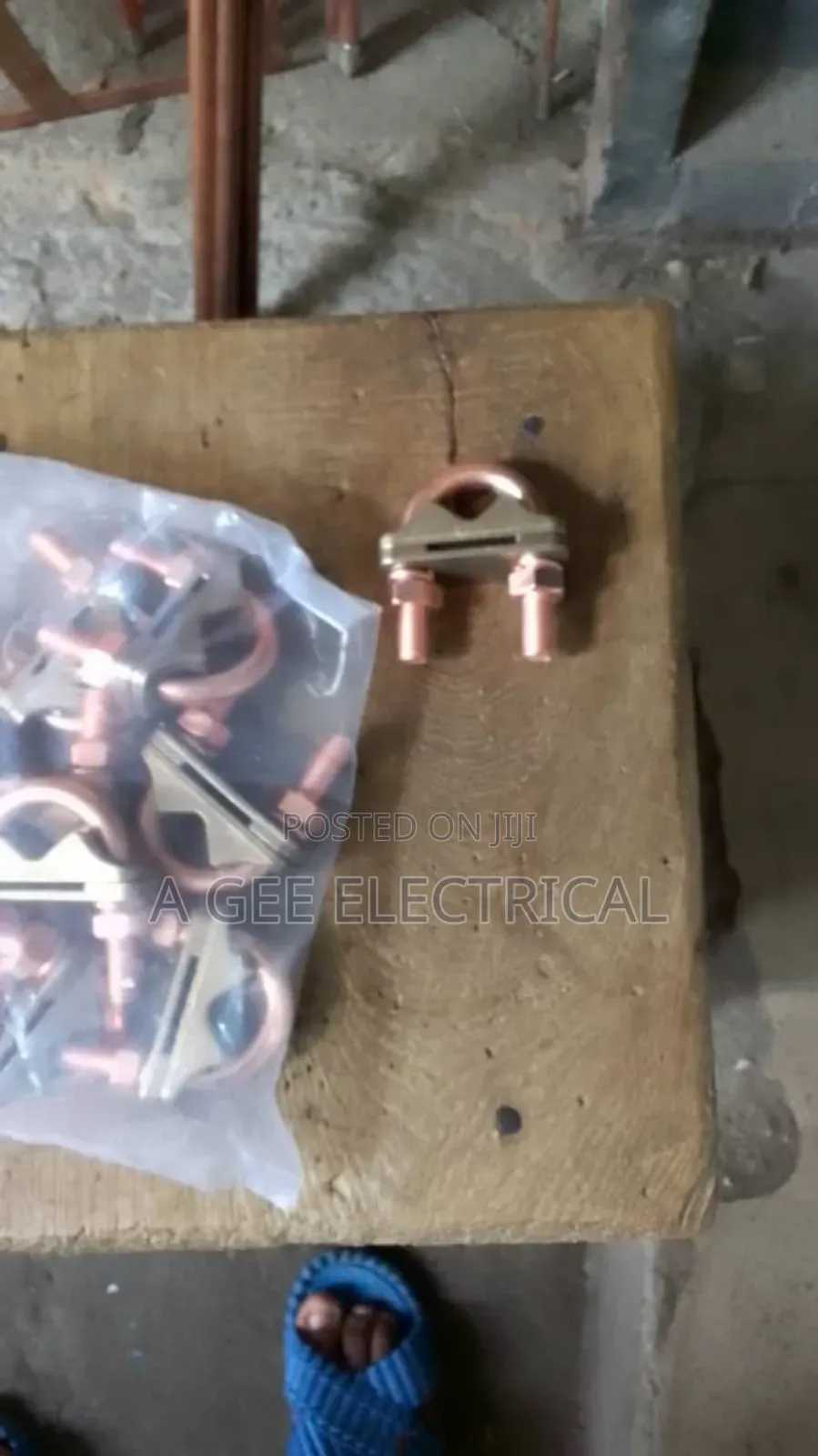

A U-bolt for copper tape is a mechanical fitting used in earthing and lightning protection systems to securely fix copper tape to round conductors, rods, or other structures. It is shaped like the letter “U”, with threaded ends that pass through a clamp plate and are tightened with nuts.
Key Features:
Material: Usually made from high-conductivity copper or copper-bonded alloys to ensure excellent electrical continuity and corrosion resistance.
Design: The U-shape allows copper tape (commonly 25 mm × 3 mm or 25 mm × 4 mm) to be clamped firmly against another surface such as earth rods, pipes, or structural steel.
Fixing Method: The tape is placed under the U-bolt, and when the nuts are tightened, it ensures a strong mechanical and electrical connection.
