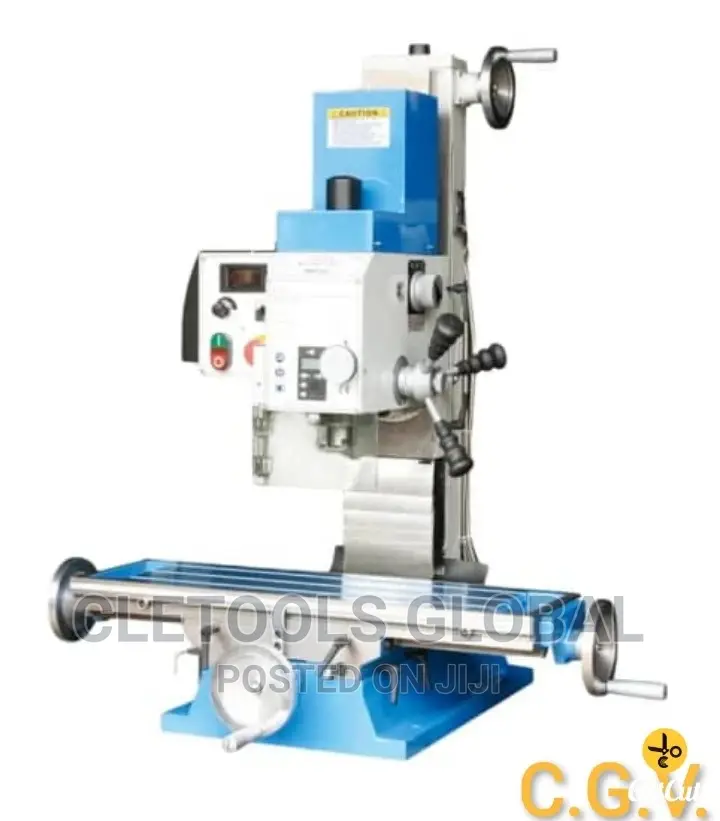

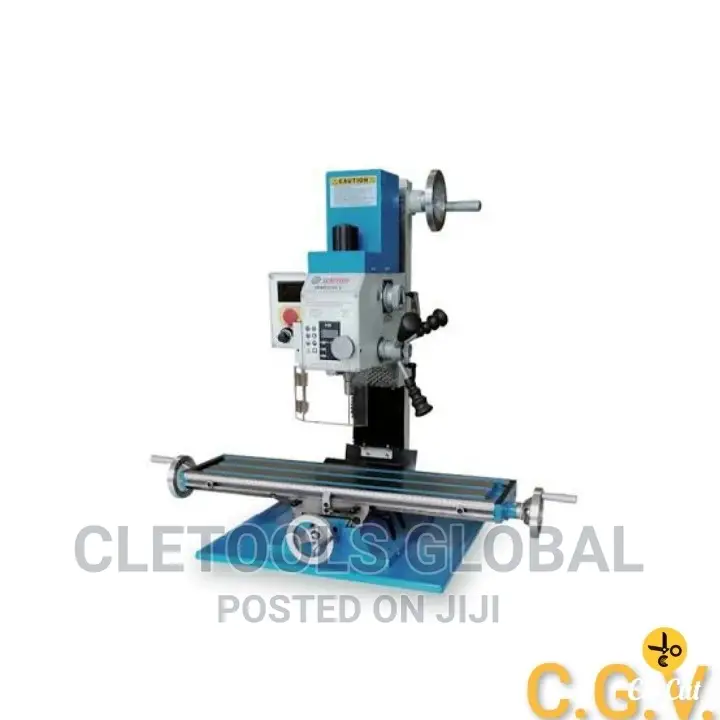

Milling Drilling Machine
Condition
Brand New
Specifications
Milling/Drilling Machine DM200V
Product Features
Full featured headstock deployed spindle sleeve stock digital read-out and electronic variable speed with tachometer,and also simple elegant safety cover
Variable control DC motor with two stage gear ratio at high/low spindle speed for a powerful torque, sleeve fine feed and headsctock tilting士45°
Model DM200V
Max. Drilling capacity 20mm
Max. End milling capacity 20mm
Max. Face milling capacity 63mm
Spindle speed (vairable) 50-2250 rpm
Spindle taper MT2
Spindle stroke 50mm
Distance between spindle nose to table 370mm
Distance between spindle to column 190mm
T-slot 3x12mm
Working table size 580×180/700×180
Travel of worktable (Y) 140mm
Travel of worktable (X) 295/495mm
Swivel of headstock ±90°
Motor power(DC) 750W
Net weight 110/120kg
Packing Size 730X770X900mm
₦ 1,600,000
